Tubular UF membranes from Berghof Membranes are made from low-fouling PVDF, PES and chemical-resistant polymers cast onto dual support layers. They are available in 3 different diameters: 5 mm over 8 mm to 12.7 mm. Additionally, our proprietary module assembly process ensures precise, end-to-end membrane tube alignment, avoiding clogging and simplifying maintenance when needed. We offer various configurations and options to choose from:

Standard membranes, backwashable membranes, chemical resistant membranes and various tube diameters and cut-offs (30 nm, 100 – 50 – 15 – 5 kDa).

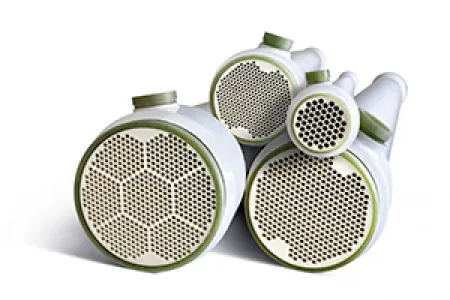

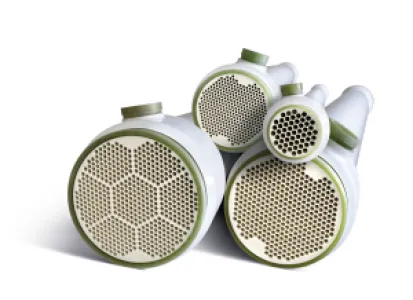

The modules are available in different diameters (3, 4, 6, 8, 10 inch), lengths (1.5, 3, 4 m) and housings (GRP or PVC). We also offer smaller module diameters and lengths for piloting and laboratory scale. Smaller modules available can contain just one membrane tube.

To overcome challenges with traditional filtration systems, Berghof Membranes pioneered the external principle in which tubular membrane filtration systems are placed OUTSIDE the feed tank or bioreactor, thereby resolving the inherent problems with submerged systems. B-SMART® is a proprietary platform, designed specifically for our OEM partners that delivers complete and modular systems to solve the challenges in the treatment of industrial streams/effluent. Plant owners are looking for cost-effective and reliable solutions that can support industrial growth. Plant operators want easy-to-maintain systems that can meet strict discharge standards. B-SMART® helps OEMs to deliver both.

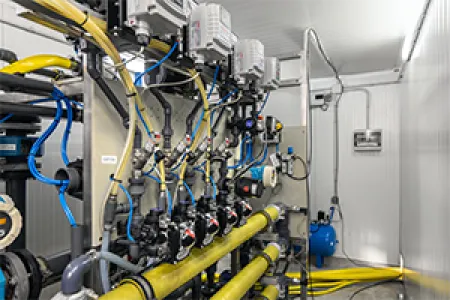

Having completed more than 2,500 projects worldwide, Berghof Membranes has grown since 1972 to become a leader in tubular membrane solutions for industrial applications. Over these years we have gained a lot of experience with piloting studies for tubular ultrafiltration, allowing our customers to tackle even their most challenging wastewater applications. Our containerized pilot units are plug-and-play and feature standardized but flexible software, allowing them to be customized to your filtration challenge. They have been designed to be flexible with the aim of coping with a broad range of wastewater characteristics and operational conditions: several membrane types, filtration parameters, and flow capacities can be very easily implemented.

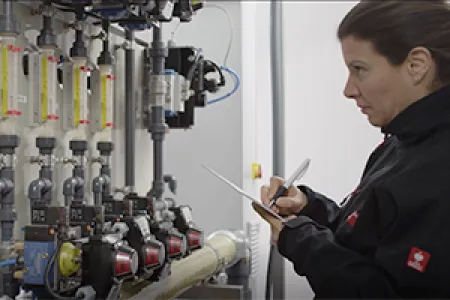

The B-CARE® program from Berghof Membranes is an end-to-end comprehensive program developed to support our OEM partners from the piloting and engineering phase to operational system monitoring. Because process streams and wastewater can vary significantly, there is no typical or standard wastewater treatment solution.
